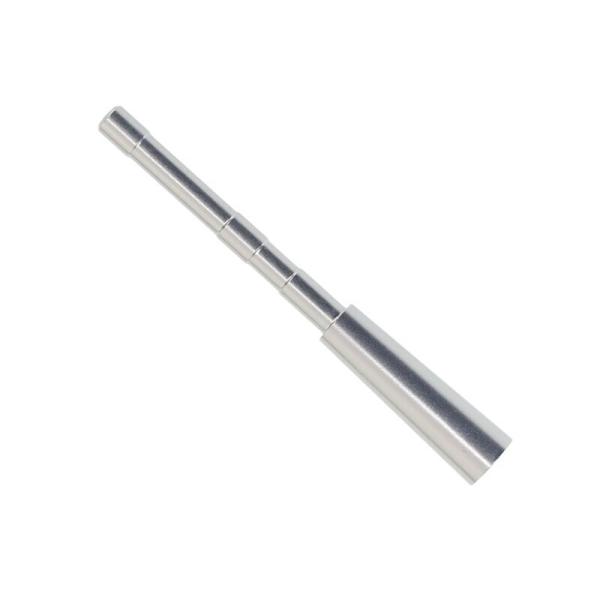

SPHERE Outsider 4.2 - Insert
With the SPHERE Outsider 4.2 Insert, screw tips with a diameter of 5/16 inch can also be used on thin shafts with an inner diameter of 4.2 mm. The insert is conically shaped and is simply glued into the shaft. The screw tip can then be screwed into the thicker, outer part of the insert.
Technical data:
Weight: 43,4 gn
Ø outside: 7,6 mm
Ø inside: 4,1 mm
Ø tips: 5/16"
Length (total): 61,9 mm
Length (in shaft): 36,7 mm
Length (outside): 25,2 mm
